Care and feeding of your shore power connection – Part 2
By Mike Sokol
Okay, so you’ve pulled into a campground with your full-size coach that needs a 50-amp/240-volt outlet on the power pedestal. Or maybe you have a small RV with a TT-30 shore power connector and can only find a 50-amp or 20-amp outlet to plug into. How does this work, and is it safe to do?
First of all, there are two basic varieties of adapters: dogbones and plugs. And these allow you to adapt from a 15- or 20-amp outlet to a 30- or 50-amp cordset, or a 30-amp outlet to a 50-amp cordset. Be aware that none of these adapters actually give you any more power than the outlet can supply. That is, no matter what kind of adapters you may plug into your RV’s shore power cordset, if you’re plugging a 50-amp cordset into a 15-amp circuit breaker, you still only have 15 amperes available to power your RV, even though you’re connecting to both sides of your RV’s 50-amp plug.
Now, I much prefer dogbone adapters over an adapter plug for the following reasons:
On the left, you see a “dogbone” adapter, so named because it resembles a cartoon version of a bone you might feed your dog, with a black connecting wire and two bulging ends. They come in all varieties. I like these because the wire hangs directly down from the outlet and doesn’t create any twisting force. Plus, these can have high-end plugs on the end with a good strain relief and quality contacts.
On the right you see a “plug” adapter, so named because it connects directly to the end of your RV’s shore power cordset. I don’t like these as much since they create a twisting force on the pedestal outlet from the weight of the cordset. Many of these are built very inexpensively and may not have the best contacts.
Next is a quick lesson on 15-amp versus 20-amp outlets and plugs. As far as the amount of current the contacts in each outlet can carry, there is NO difference between the two – it’s simply a keying thing.

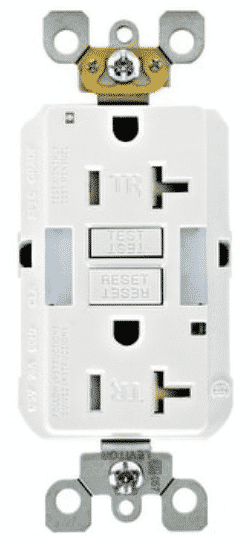

Note that the 20-amp version (right) has a sideways blade as a key to keep you from inserting a 20-amp plug into a 15-amp keyed outlet (left). But normally most 15- or 20-amp “USA” receptacles are keyed for 20 amperes of current, and most “USA” plugs are keyed with the 15-amp straight blade so they’ll plug into either a 15-amp or 20-amp outlet.
Here is a quick overview of the three most important dogbone adapters you might need in your road kit.
If your RV uses a 30-amp/120-volt cordset, then you probably only need a 15-amp to 30-amp dogbone adapter like this one. Remember, even though this is listed as a “15-amp” adapter, it’s actually rated for 20 amps of current and will plug into any 20-amp outlet on a campground pedestal.
If your RV uses a 50-amp/240-volt cordset, then there are two possible dogbone adapters you need: a 15-amp to 50-amp adapter for when you plug into a 20-amp outlet on a pedestal, or a 15-amp outlet in your garage. A properly wired dogbone like this will jump the single hotline from the pedestal to the two hotlines going into your RV. So both sides of your RV should receive 120-volt power, but you’re still limited to the 20 amps from the outlet.
Plus, you’ll want a 30-amp to 50-amp adapter for when you plug into a 30-amp/120-volt outlet on a pedestal. Again, a properly wired dogbone like this will jump the single hotline from the pedestal to the two hotlines going into your RV. So both sides of your RV should receive 120-volt power, but you’re still limited to the 30 amps from the outlet.
You really don’t want to stack a 15- to 30-amp adapter in line with a 30- to 50-amp adapter if you can avoid it. Remember that every electrical connection creates another potential failure point as well as increases your voltage drop, and you don’t want to lose any extra volts in a campground that might be low on voltage to begin with.
Come back next Wednesday for Part III on the care and feeding of your shore power, when I’ll go over specialty Y-cables and reversed 50- to 30-amp adapters. See you then …
